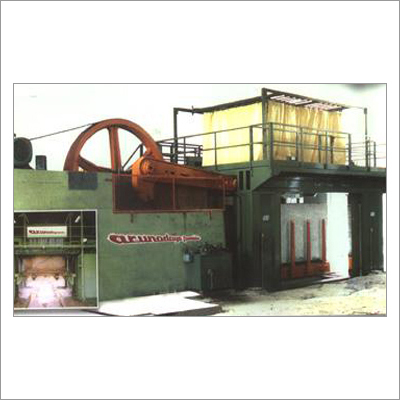

Diamond Gang Saw Machine

Diamond Gang Saw Machine
Diamond Gang Saw Machine
Product Code : A-10
Brand Name : Arunodaya Foundries
Product Description

Noted among the top most organization, we are engaged in manufacturing, supplying and exporting sturdily built Diamond Gang Saw Machine. This machine is fabricated employing latest technology and equipment in order to meet the international quality standards. Our machine is available in various models, grades and specifications as per the choices of clients. This machine is widely used for cutting and grinding applications. With the help of our reliable logistics personnel, we assure secure shipment of this Diamond Gang Saw Machine within the time specified.

Various characteristics:

  • Simple operation

  • Longer service life

  • Rugged construction

  • High tensile strength

Other details:

SHORT DESCRIPTION: Diamond Gang Saw machine suitable to operate with 80 BLADES and capable to house block size 3000 x 2000 x 2000mm. (B)TECHNICAL SPECIFICATIONS:Size of block: 3 x 2 x 2 M;No. of diamond segmented blades: 80;Water requirement: 800 Ltr./1';Total horse power: 150 H.P.;Production capacity on normal Makrana white marble: 150.00 sq.ft./hr.;Stroke: 650;Cycle: 100;Size of the Machine: 3100 x 2000 x 2000;Strainers: 70 sets;Tensioning device: Mech. System;Minimum slab thickness: 18 mm;Tension of the blades: 880 Tons;Lubrication system: Centralized Lub.;Saw Car: 3000 x 1600 mm;Spacers: 160 sets;Electric motor for trolley up & down (Rapid): 10.0 H.P.;Auto Feed: 3 H.P.;Auxiliary Motor: 2 H.P.;Water-pump: 12.5 H.P.;Electric control panel: Fitted with necessary control and safety devices.;Total installed power: 175 H.P.;Overall space required: 13500 x 5500 x 6000;Total weight of the Machine: 50,000 Kg. Approx.

ADDITIONAL DETAILS/FEATURES: There is a provision of central lubrication systems and oil is recycled after filtration to ensure better life of sliding parts.;The whole operation of machine is displayed on control panel for at a glance notice of various operations in process. Also it is easy to observe as to the system failure if any during run. All controls like contractors, Overload relays, M.C.C.B. etc. are used for standard make and properly wired and housed in PVC channel for better protection.;Standard make reduction gears are used for long life. Water spray frame has been designed in such a way that periodically cleaning can be done for removing slurry so that water pressure is maintained during sawing which is necessary for better tool life.

Technical Specifications

SPECIFICATIONS

Size Of Block

3x2x2M

No. Of Diamond Segmented Blades

80

Water Requirement

800 Ltr.

Total Horse Power

150 H.P.

Production Capacity On Normal

150.00 Sq. Ft./Hr.

Makrana White Marble

Complete With Electric Panel

Stroke

650

Cycle

100
