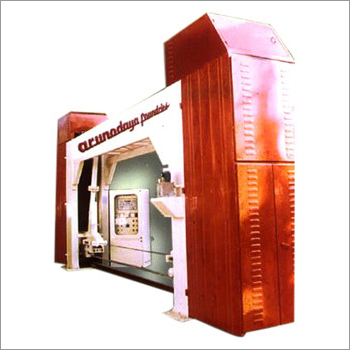

Block Dressing Machine

Block Dressing Machine
Block Dressing Machine
Product Code : A-11
Brand Name : Arunodaya Foundries
Product Description

Enriched with vast industrial experience, we have been committed to manufacture, supply and export sturdily-built Block Dressing Machine. In order to meet the international quality standards, this machine is fabricated using high grade raw materials and other components that are procured from certified vendors of the market. We thoroughly check this machine on criterion like flawless performance in order to provide best quality results to our esteemed clients. This Block Dressing Machine is extensively used for stone cutting and construction applications.

Striking attributes:

  • Simple usage

  • Sturdy construction

  • High tensile strength

  • High performance

Other details:

This machine is built on two strongly fabricated pillars connected by trusses. Each pillar is carrying blade holder unit which are connected together by steel tube useful for giving hydraulic tension to the blade. The up and down motion is given by separate drive unit for rapid as well as auto-feed by two separate motor interconnected by reduction unit through electro magnetic clutch.;Fixed bench trolley size 3000 x 3000 mm electrically operated through reduction unit is also supplied along with machine. Centrally lubrication system is provided for every lubrication point. All operations are controlled from electric control centre which consists of :

  • Oil pressure gauge for blade stretching.

  • Amperemeter controlling for under load.

  • Automatic Hydraulic power pack with accumulator.

Automatically cut-off all contracts in case of water failure of blade tension is lost. Auto Sensor is provided to maintain constant tension for perfect cut on marble. Variac is provided to adjust the feed rate according to hardness of stone.

Technical Specifications

Main electric motor

30 H.P.

Feed motor slow speed

1.5 H.P. (D.C.)

Lifting motor fast speed

3 H.P.

Strokes

160/MIN

Stroke Length

420 M/M

Blade Length

4000 M/M

Cutting Height

2000 M/M

Power hydraulic unit

1 H.P.

Water requirement

10 LIT./MIN

Working lower speed

0 to 2000 mm/hr.

Fast up & Down

2 H.P. Squirrel cage motor.

Maximum down feed

Max. 1 meter in Makrana Marble

Maximum useful cut size

3500 x 2100 mm

Size of saw car

3000 x 3000 mm.

Area requirement

5000 x 7000 x 4000
